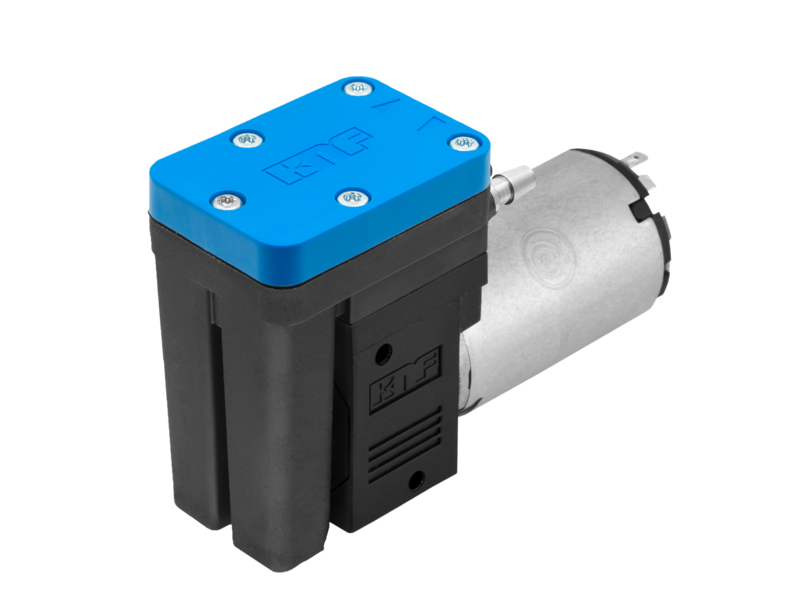

Diaphragm Gas Pump
NP 20
Diaphragm Gas Pump
NP 20
- Flow Rate (max.): 2.4 l/min
- Pressure (max.): 0 bar (rel.)
- Vacuum (max.): 240 mbar (abs.)
KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.
Benefits
- Low pulsation
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- Maintenance-free
- Can run dry
- Adjustable performance
- Digitally adjustable motor
Special Features
- Diaphragm pump
- Low pulsation
| Flow Rate (max.) | 2.4 l/min |
| Pressure (max.) | 0 bar (rel.) |
| Ultimate Vacuum (max.) | 240 mbar (abs.) |
| Valve Material Options | EPDM |
| Diaphragm Material Options | EPDM |
| Pump Head Material Options | PPS |
| Motor Type Options | DC, Brushless DC |
- Analytical instruments
- Chemical industry
- Climate technology
- Emission monitoring
- Food & beverage industry
- Gas analytics
- Inkjet printing
- Lab equipment
- Medical equipment
- Security and defense
- Vacuum technology
NP 20
Datasheet NP 20
PDF (2 MB) - Datasheet - English
Operating Manual NP 20
PDF (926 KB) - Operating Manual - English
3D CAD NP20
ZIP (71 MB) - CAD File - English
Technical Details
| Flow Rate (max.) | 2.4 l/min |
| Pressure (max.) | 0 bar (rel.) |
| Ultimate Vacuum (max.) | 240 mbar (abs.) |
| Valve Material Options | EPDM |
| Diaphragm Material Options | EPDM |
| Pump Head Material Options | PPS |
| Motor Type Options | DC, Brushless DC |
Features
Benefits
- Low pulsation
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- Maintenance-free
- Can run dry
- Adjustable performance
- Digitally adjustable motor
Special Features
- Diaphragm pump
- Low pulsation
Applications
- Analytical instruments
- Chemical industry
- Climate technology
- Emission monitoring
- Food & beverage industry
- Gas analytics
- Inkjet printing
- Lab equipment
- Medical equipment
- Security and defense
- Vacuum technology
Downloads
Datasheet NP 20
PDF (2 MB) - Datasheet - English
Operating Manual NP 20
PDF (926 KB) - Operating Manual - English
3D CAD NP20
ZIP (71 MB) - CAD File - English
Accessories NP 20
Here, you can find an overview of the available accessories for this product. For further details or order requests, please get in touch with our experts.
Contact Us
| Silencers & Filters | Part No. | ||
|---|---|---|---|
|
Silencer
|
Suitable for hose barbs
|
Part No.
311970
|
| Mounting Kits & Shock Mounts | Part No. | ||
|
Rubber-bonded metal
|
Part No.
On request
|
|
|
Mounting plate
|
Hole distance 43x22mm. Inner diameter of the sleeve is 3.5 mm, screws are not included
|
Part No.
164313
|
