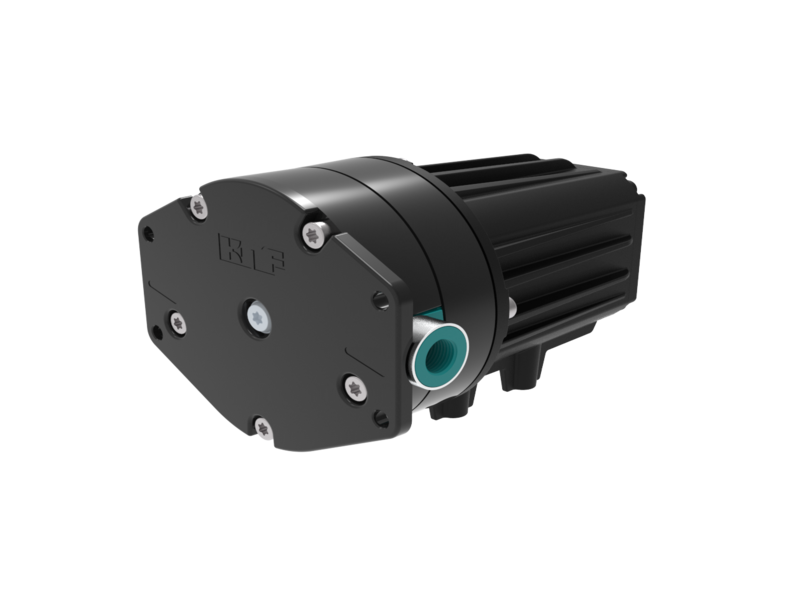

Diaphragm Liquid Pump
FP 2.150
Diaphragm Liquid Pump
FP 2.150
- Flow Rate (max.): 1.3 l/min
- Pressure (max.): 10 bar (rel.)
- Suction Height (max.): 2.7 mH₂O
KNF diaphragm liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options.
Benefits
- Excellent reliability
- High performance-to-size ratio
- Maintenance-free
- Highly resistant to aggressive media
- Self-priming
- Can run dry
- Low pulsation
- FDA-approved materials available
- NSF certified
- Digitally adjustable motor
- Adjustable performance
- Contamination free transfer
Special Features
- Low pulsation
- NSF certified
| Flow Rate (max.) | 1.3 l/min |
| Pressure (max.) | 10 bar (rel.) |
| Suction Height (max.) | 2.7 mH₂O |
| Valve Material Options | EPDM, FFKM / FKM |
| Diaphragm Material Options | PTFE |
| Pump Head Material Options | PP |
| Motor Type Options | Brushless DC |
- Agriculture
- Analytical instruments
- Chemical industry
- Cleaning and disinfection
- Emission monitoring
- Food & beverage industry
- Fuel cells
- Inkjet printing
- Lab equipment
- Medical equipment
- Semi-conductors
- Security and defense
FP 2.150
Datasheet FP 2.150
PDF (2 MB) - Datasheet - English
Operating Manual FP 2.150
PDF (1 MB) - Operating Manual - English
3D CAD Model FP 2.150
ZIP (7 MB) - CAD File - English
Technical Details
| Flow Rate (max.) | 1.3 l/min |
| Pressure (max.) | 10 bar (rel.) |
| Suction Height (max.) | 2.7 mH₂O |
| Valve Material Options | EPDM, FFKM / FKM |
| Diaphragm Material Options | PTFE |
| Pump Head Material Options | PP |
| Motor Type Options | Brushless DC |
Features
Benefits
- Excellent reliability
- High performance-to-size ratio
- Maintenance-free
- Highly resistant to aggressive media
- Self-priming
- Can run dry
- Low pulsation
- FDA-approved materials available
- NSF certified
- Digitally adjustable motor
- Adjustable performance
- Contamination free transfer
Special Features
- Low pulsation
- NSF certified
Applications
- Agriculture
- Analytical instruments
- Chemical industry
- Cleaning and disinfection
- Emission monitoring
- Food & beverage industry
- Fuel cells
- Inkjet printing
- Lab equipment
- Medical equipment
- Semi-conductors
- Security and defense
Downloads
Datasheet FP 2.150
PDF (2 MB) - Datasheet - English
Operating Manual FP 2.150
PDF (1 MB) - Operating Manual - English
3D CAD Model FP 2.150
ZIP (7 MB) - CAD File - English
