KNF LIQUIPORT LIQUID PUMPS

For Transferring Aggressive Laboratory Liquids

The KNF LIQUIPORT liquid transfer pumps provide the solution you need to safely move liquids between containers and vessels. Removing HPLC waste to a collection vessel? Transferring the mobile phase from a large to a small container? Filling/emptying reactors or dissolution equipment? Temperature bath management? Contact our lab experts with your specific application needs and we’ll recommend the best LIQUIPORT lab pump for the job.

Contact KNF USA Lab Support

Featuring flow rates up to 3 L/min, with clean, quiet, and oil-free operation. A choice of pump head materials (PP, PVDF, PTFE) ensures compatibility with even the most aggressive media. LIQUIPORT pumps are self-priming, can operate dry indefinitely without damage, and are maintenance-free. NF1.100 and NF1.300 models have a higher-pressure rating and all models are available with either manual or remote analog control capability.

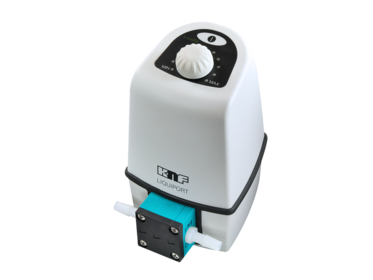

LIQUIPORT® NF 100 & NF 1.100 Liquid Transfer Pumps

NF 100
Flow Rate: 0.2 – 1.3 L/min
Suction Height: 9.8 ft. water
Max Pressure: 15 psig

NF 1.100
Flow Rate: 0.2 – 1.3 L/min
Suction Height: 9.8 ft. water
Max Pressure: 58 psig

Pump Version and Control Type
S Version
- Manual operation

RC Version
- Manual operation
- Analog control: 0 – 10V for 0 – 100%
- Start/stop through logic control
- Output signal fault alarm
- RC cable for external control included

View the NF 100 & NF 1.100 Data Sheet Here

LIQUIPORT® NF 100 & NF 1.100 Operating Manual

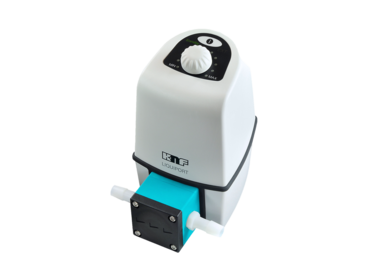

LIQUIPORT® NF 300 & NF 1.300

NF 300
Flow Rate: 0.5 – 3.0 L/min
Suction Height: 9.8 ft. water
Max Pressure: 15 psig

NF 1.300
Flow Rate: 0.5 – 3.0 L/min
Suction Height: 9.8 ft. water
Max Pressure: 58 psig

Pump Version and Control Type
S Version
- Manual operation

RC Version
- Manual operation
- Analog control: 0 – 10V for 0 – 100%
- Start/stop through logic control
- Output signal fault alarm
- RC cable for external control included

View the Liquiport NF 300 and NF 1.300 Data Sheet Here
