Robust and durable, with high pressure and high gas tightness, the N 630 offers unparalleled capabilities. The pump series is already being expanded. Non-explosion-proof versions will now also be available for a wide range of tasks in the areas of environmental measurement technology and process manufacturing as well as in the chemical industry.

Features & Benefits

These are the main advantages of the N 630 gas pump series:

  • High chemical resistance
  • Durable even with difficult operating conditions
  • High level of gas tightness
  • Ambient temperatures of up to 60 °C possible with water cooling
  • The pump can start against the entire pressure and vacuum range
  • Stable transfer rate at all pressure levels throughout process
  • Quiet operation with minimal vibration
  • High operating pressure of max. 12 bar rel. (N 630.15 version only)

The Right Fit for Your Need

The N 630 is available in four variants: either one-headed or two-headed and connected in series or parallel, as a vacuum pump or compressor. All models come with an optimized, PTFE-coated diaphragm, which is the primary reason for the pump’s robustness and long service life.



Familiarize yourself with the technical details of our N 630 gas pump series:

N 630 – One-headed Vacuum Pump and Compressor

­­Flow Rate (max.): 35 l/min

Operating Pressure (max.): 7 bar (rel.)

Ultimate Vacuum (max.): 120 mbar (abs.)

­

Get all technical details here

N 630.15 – Two-headed Compressor with Series Connections

Flow Rate (max.): 35 l/min

Operating Pressure (max.): 12 bar (rel.)

Ultimate Vacuum (max.): 70 mbar (abs.)

­

Get all technical details here

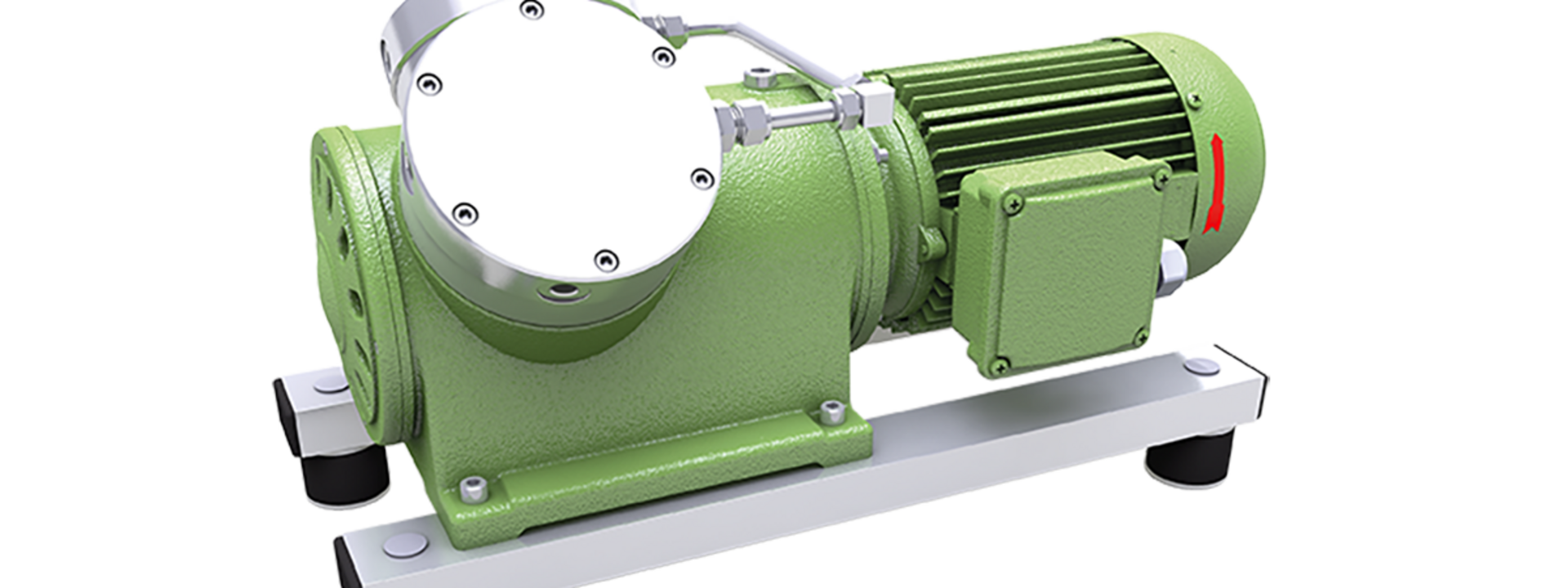

N 630.3 – Two-headed Vacuum Pump with Series Connections

Flow Rate (max.): 35 l/min

Operating Pressure (max.): 0.5 bar (rel.)

Ultimate Vacuum (max.): 25 mbar (abs.)

­

Get all technical details here

N 630.1.2 – Two-headed Compressor with Parallel Connections

Flow Rate (max.): 68 l/min

Operating Pressure (max.): 7 bar (rel.)

Ultimate Vacuum (max.): 120 mbar (abs.)

­

Get all technical details here

Modular System Options

Every application is different and some are one of a kind. By selecting and combining a variety of options, ranging from the material used to make the pump components that come into contact with the media, to the drive and the mechanical elements such as the circuit point and connections, it is easy to tailor every series model to meet application-specific requirements.

The following pump parts of the N 630 gas pump series can be customized by our modular system:

Pump head
Diaphragm
Valves
Motor
Pump head
▪  Stainless steel
Diaphragm
▪  EPDM
▪  PTFE-coated­
Valves
▪  Stainless steel­
Motor
▪  Three-phase motor with 230/400 V, 50 Hz
▪  Three-phase motor with 200/346 V, 50/60 Hz
▪  Three-phase motor with 220/380 V, 60 Hz
▪  Three-phase motor with 277/480 V, 60 Hz
▪  Capacitor motor with 230 V, 50 Hz
▪  Capacitor motor with 100 V, 50/60 Hz
▪  Capacitor motor with 220 V, 60 HZ
▪  Capacitor motor with 115 V, 60 Hz

Let Us Know Your Specifications!

We implement your specifications carefully and precisely. This means you get a diaphragm pump that meets the requirements of your process, your operating conditions and the properties of the process medium. We would also be happy to discuss options for providing out a sample pump.
Contact us

Learn More About our N 630 Pump Series as Explosion-Proof and Double-Diaphragm Version
