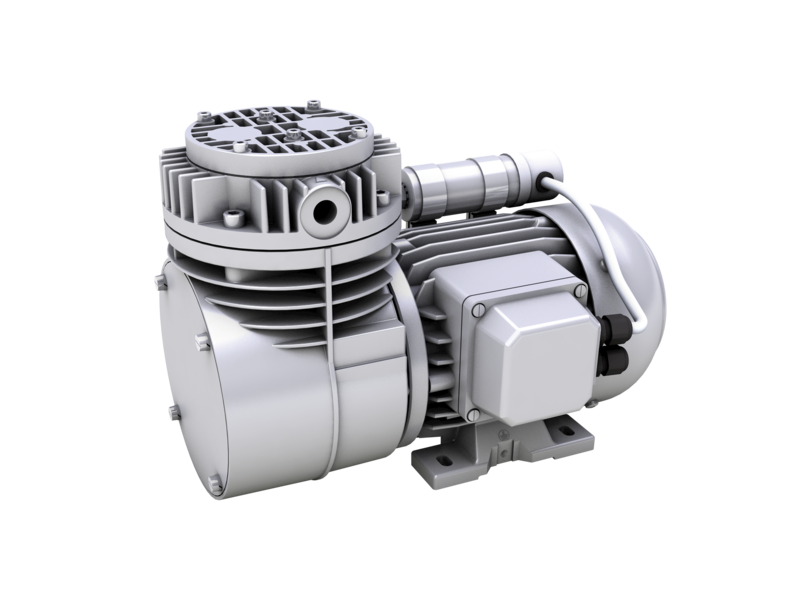

Diaphragm Gas Pump
N 035
Metric
Imperial
Metric
Imperial
Diaphragm Gas Pump

N 035

  • Flow Rate (max.): 30 l/min
  • Pressure (max.): 4 bar (rel.)
  • Vacuum (max.): 100 mbar (abs.)
Would you like to learn more about this product?
Contact Us Frequent Questions

KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation.

Would you like to learn more about this product?
Contact Us Frequent Questions
Benefits
  • Excellent reliability
  • Contamination free transfer
  • Maintenance-free
Special Features
  • Diaphragm pump
  • High IP class (>44)
Flow Rate (max.)30 l/min
Pressure (max.) 4 bar (rel.)
Ultimate Vacuum (max.) 100 mbar (abs.)
Valve Material OptionsStainless steel, CR, PTFE, FPM
Diaphragm Material OptionsCR, PTFE coated, FPM
Pump Head Material OptionsAluminium, Stainless steel
Motor Type OptionsAC
  • Medical equipment
  • Analytical instruments
  • Chemical industry
  • Climate technology
  • Gas analytics
  • Emission monitoring
N 035
Datasheet N 035

PDF (1 MB) - Datasheet - English

Operating Manual N 035

PDF (1 MB) - Operating Manual - English

3D CAD Model N 035

ZIP (98 MB) - CAD File - English

Flow Rate (max.)30 l/min
Pressure (max.) 4 bar (rel.)
Ultimate Vacuum (max.) 100 mbar (abs.)
Valve Material OptionsStainless steel, CR, PTFE, FPM
Diaphragm Material OptionsCR, PTFE coated, FPM
Pump Head Material OptionsAluminium, Stainless steel
Motor Type OptionsAC
Benefits
  • Excellent reliability
  • Contamination free transfer
  • Maintenance-free
Special Features
  • Diaphragm pump
  • High IP class (>44)
  • Medical equipment
  • Analytical instruments
  • Chemical industry
  • Climate technology
  • Gas analytics
  • Emission monitoring
Datasheet N 035

PDF (1 MB) - Datasheet - English

Operating Manual N 035

PDF (1 MB) - Operating Manual - English

3D CAD Model N 035

ZIP (98 MB) - CAD File - English

Accessories N 035

Here, you can find an overview of the available accessories for this product. For further details or order requests, please get in touch with our experts. Contact Us
Silencers & Filters Part No.
Silencer/Inlet filter
G 1/4
Part No. 000352
Valves & Gauges Part No.
Fine control valve
With vacuum gauge, pressure side for N 035 ANE
Part No. 000354
Fine control valve
With pressure gauge
Part No. 000482
Pressure relief valve
4 bar, suitable for N 035 ANE
Part No. 047601
Fittings & Connectors Part No.
Hose connector
Suitable for hose ID 9, brass, G 1/4
Part No. 000362
Hose connector
Suitable for hose ID 9, stainless steel, G 1/4
Part No. 020234
