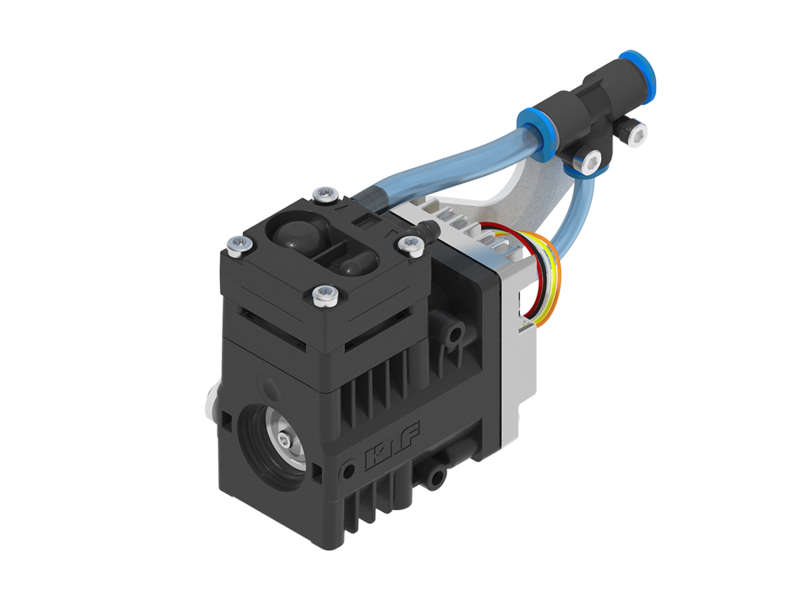

NPC 830 HP
- Flow Rate (max.): 4.5 l/min
- Pressure (max.): 3 bar (rel.)
- Vacuum (max.): 0 mbar (abs.)
- Pump with Intelligent Feature Pressure Control
KNF diaphragm gas pumps transfer or compress gases and vapors and generate a vacuum without contaminating the media. Different options are available for application-specific requirements related to size, motor type, control, voltage, chemical resistance, safety, vibration, noise, and temperature resistance. All pump types offer oil-free operation.
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- FDA-approved materials available
- Digitally adjustable motor
- Maintenance-free
- Adjustable performance
- Pump with Intelligent Feature Pressure Control
- Diaphragm pump
- Low leakage
- Low pulsation
| Flow Rate (max.) | 4.5 l/min |
| Pressure (max.) | 3 bar (rel.) |
| Ultimate Vacuum (max.) | 0 mbar (abs.) |
| Valve Material Options | FKM |
| Diaphragm Material Options | FKM |
| Pump Head Material Options | PPS |
| Motor Type Options | Brushless DC |
- Analytical instruments
- Automotive
- Emission monitoring
- Food & beverage industry
- Fuel cells
- Gas analytics
- Inkjet printing
- Lab equipment
- Medical equipment
- Security and defense
- Semi-conductors
- Vacuum technology
Click here
PDF (3 MB) - Datasheet - English
PDF (1 MB) - Operating Manual - English
ZIP (108 MB) - CAD File - English
PDF (1 MB) - Technical document - English
PDF (2 MB) - Technical document - English
Technical Details
| Flow Rate (max.) | 4.5 l/min |
| Pressure (max.) | 3 bar (rel.) |
| Ultimate Vacuum (max.) | 0 mbar (abs.) |
| Valve Material Options | FKM |
| Diaphragm Material Options | FKM |
| Pump Head Material Options | PPS |
| Motor Type Options | Brushless DC |
Features
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- FDA-approved materials available
- Digitally adjustable motor
- Maintenance-free
- Adjustable performance
- Pump with Intelligent Feature Pressure Control
- Diaphragm pump
- Low leakage
- Low pulsation
Applications
- Analytical instruments
- Automotive
- Emission monitoring
- Food & beverage industry
- Fuel cells
- Gas analytics
- Inkjet printing
- Lab equipment
- Medical equipment
- Security and defense
- Semi-conductors
- Vacuum technology
Assembly Instruction
Click here
Downloads
PDF (3 MB) - Datasheet - English
PDF (1 MB) - Operating Manual - English
ZIP (108 MB) - CAD File - English
PDF (1 MB) - Technical document - English
PDF (2 MB) - Technical document - English
Accessories NPC 830 HP
| Silencers & Filters | Part No. | ||
|---|---|---|---|
|
Silencer
|
For Y-connector double head pump
|
Part No.
338498
|
|
Filter
|
KNF filters protect both the pumps and components from particles, crystals, and fibers that could impair their proper functioning
|
Part No.
316422
|
| Mounting Kits & Shock Mounts | Part No. | ||
|
Rubber-bonded metal
|
Part No.
On request
|
|
|
Mounting plate
|
Part No.
164313
|
|
| Electrical | Part No. | ||
|
Serial-interface adapter
|
USB-A cable to parameterize the pump with the KNF Connect webtool.
|
Part No.
347669
|
