UFK 1.1100

A Revolutionary New Liquid Pump
for HazLoc Areas

A Revolutionary New Liquid Pump for HazLoc Areas

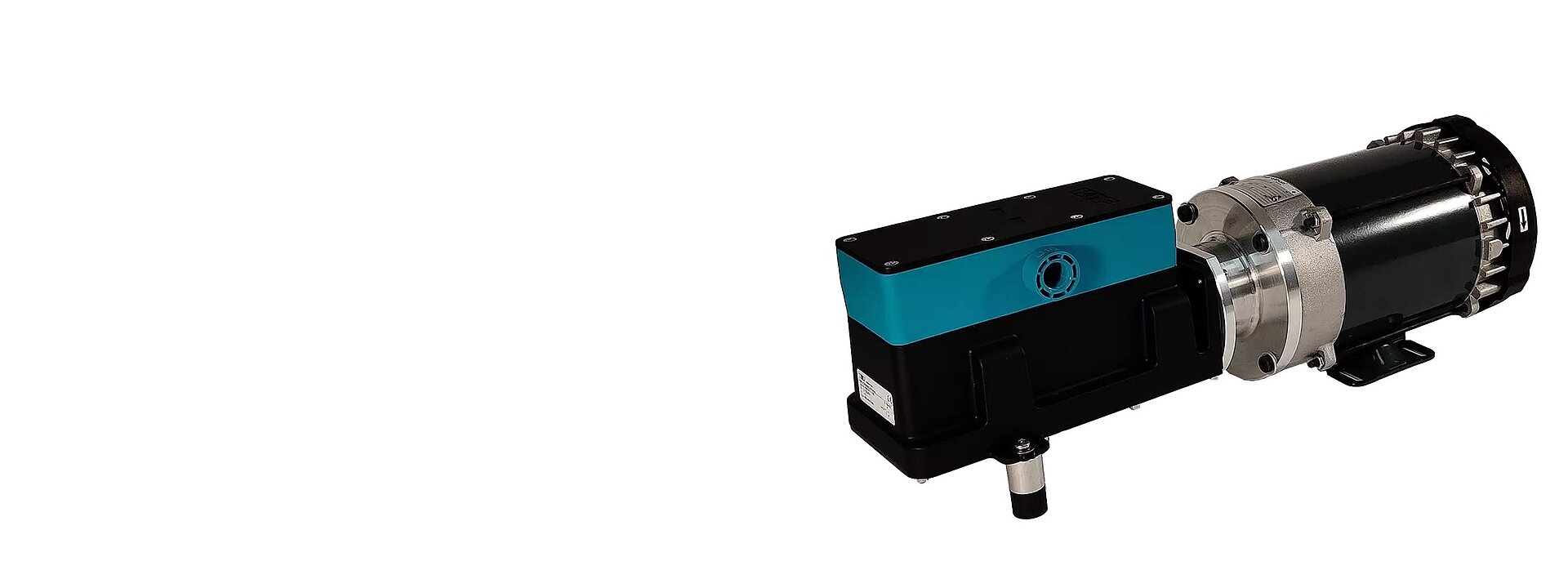

KNF’s new UFK 1.1100 EX is a revolutionary three-diaphragm liquid pump engineered to provide high flow rate and low pulsation in HazLoc areas. It offers one of the market’s most advanced solutions for liquid transfer, providing KNF’s best performance yet from a HazLoc pump. The UFK 1.1100 EX has a durable, die-cast aluminum housing with high torque motors and elastomer diaphragms to prevent contamination. It is self-priming and capable of running dry, reducing the need for additional equipment.

Product Introduction

KNF UFK 1.1100 Features at a Glance

Valves

Diaphragms

HazLoc Motor

Drivetrain

Built in Pressure Regulation

Valves

Corrosive resistant
Individually sealed
Easily replaced

Diaphragms

120 deg out of phase for smooth flow
Corrosive resistant
Easily replaced

HazLoc Motor

Class 1, Division 1, Groups C&D
Other certifications available
1/3 HP UL/CSA

Drivetrain

Supported by 2 ball bearings
Braced by cast aluminum housing
Coupled to HazLoc motor

Built in Pressure Regulation

Integrated and adjustable
Protects the pump from overpressure
Can be used as a backpressure regulator

Explosion Proof for Hazardous Locations

The UFK 1.1100 EX features explosion proof technology, making it safe for hazardous locations. It comes standard with a Class 1, Division 1, Groups C&D, single-phase AC motor, with other options available.

Learn About ExProof Pumps

Smooth Flow, Low Pulsation

Delivering pulsation values below 200 mbar (even lower with a damper) and flow rate up to 11.5 l/min, the UFK 1.1100 delivers optimal performance in HazLoc Areas.

Learn More About Smooth Flow Pumps

Optimal Performance, A Variety of Features

The UFK 1.1100 EX offers over-pressure protection and is self-priming, with a 4.5 mH20 suction height. Its elastometric diaphragms remove the risk of media contamination and allows the pump to convey even corrosive liquids.
