Recirculation
Here is a selection of → KNF pumps for the hydrogen value chain and fuel cell systems that can be used for recirculation of the following media:
→ Hydrogen, hydrogen gas, hydrogen steam
→ Oxygen
Hydrogen, Hydrogen Gas, Hydrogen Steam
The following KNF pumps can be used for recirculating hydrogen, hydrogen gas and hydrogen steam:
NMP 820
NMP 830

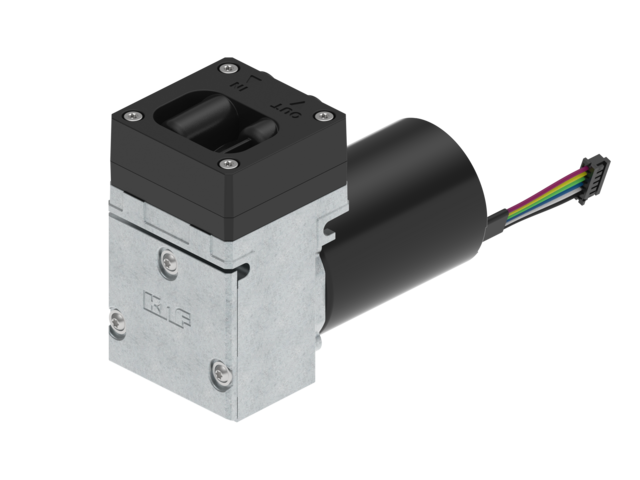

N 96
NMP 830.1.2 HP
Flow rate: max. 2.1 l/min
Ultimate vacuum: max. 330 mbar (abs.)
Operating pressure: max. 1.2 bar (rel.)
![NMP 820](/fileadmin/_processed_/7/7/csm_OEM_Product_NMP_820_KDC-B_side_1200x900px_f13ebba339.png)
Flow rate: max. 3.1 l/min
Ultimate vacuum: max. 250 mbar (abs.)
Operating pressure: max. 1.4 bar (rel.)
![NMP 830](/fileadmin/_processed_/3/d/csm_OEM_Product_NMP830K_DC-B_I_1200_900px_5557b42b27.png)
Flow rate: max. 8.5 l/min
Ultimate vacuum: max. 100 mbar (abs.)
Operating pressure: max. 2.5 bar (rel.)
![N 96](/fileadmin/_processed_/0/c/csm_OEM_N_96_TIF-RGB_72ppi_172248200b.png)
Flow rate: max. 9 l/min
Ultimate vacuum: max. 55 mbar (abs.)
Operating pressure: max. 3 bar (rel.)
![NMP 830.1.2 HP](/fileadmin/_processed_/d/4/csm_OEM_Product_NMP830.1.2KPDC-B_HP_KM32_side_2020_1200px_900px_007ad5f76f.png)
N 816
NMP 850.1.2 HP
N 838
N 938
Flow rate: max. 16 l/min
Ultimate vacuum: max. 100 mbar (abs.)
Operating pressure: max. 0.5 bar (rel.)
![N 816](/fileadmin/_processed_/9/2/csm_OEM_Product_N_816_APDC-B_side_2020_1200px_900px_1a112dad7d.png)
Flow rate: max. 16 l/min
Ultimate vacuum: max. 50 mbar (abs.)
Operating pressure: max. 2.2 bar (rel.)
![NMP 850.1.2 HP](/fileadmin/_processed_/1/d/csm_OEM_Product_NMP_850_1_2_KPDC-B_HP_KM42_side_2020_1200px_900px_2f6d7b853f.png)
Flow rate: max. 34 l/min
Ultimate vacuum: max. 100 mbar (abs.)
Operating pressure: max. 0.5 bar (rel.)
![N 838](/fileadmin/_processed_/d/5/csm_OEM_Product_N_838_ANDC-B_side_2020_1200px_900px_56e01c2daa.png)
Flow rate: max. 35 l/min
Ultimate vacuum: max. 160 mbar (abs.)
Operating pressure: max. 1 bar (rel.)
![N 938](/fileadmin/_processed_/1/8/csm_OEM_Product_N_938_side_2023_1200px_900px_001c62bf23.png)
N 630
N 838.1.2
Flow rate: max. 35 l/min
Ultimate vacuum: max. 120 mbar (abs.)
Operating pressure: max. 7 bar (rel.)
![N 630](/fileadmin/_processed_/1/a/csm_OEM_Product_N_630_SP-RGB-72dpi_side_1200px_900px_8f899ffac0.png)
Flow rate: max. 60 l/min
Ultimate vacuum: max. 90 mbar (abs.)
Operating pressure: max. 0.5 bar (rel.)
![N 838.1.2](/fileadmin/_processed_/6/a/csm_OEM_Product_N_838_1_2_KPDC-B_side_2020_1200px_900px_8d43aab89e.png)
Methanol-Water Solution
The following KNF pumps can be used for recirculating methanol-water solutions:
NF 5
FF 20
NF 60
NFB 100
Flow rate: max. 0.07 l/min
Suction height: max. 3 mH2O
Operating pressure: max. 1 bar (rel.)
![NF 5](/fileadmin/_processed_/6/3/csm_OEM_Product_NF_5_KPDCB-4_side_2020_1200px_900px_9938266f20.png)
Flow rate: max. 0.23 l/min
Suction height: max. 3.5 mH2O
Operating pressure: max. 3 bar (rel.)
![FF 20](/fileadmin/_processed_/0/7/csm_OEM_Product_FF_20_KPDCB-4_side_2020_1200x900px_aa9b174e36.png)
Flow rate: max. 0.6 l/min
Suction height: max. 3 mH2O
Operating pressure: max. 1 bar (rel.)
![NF 60](/fileadmin/_processed_/e/d/csm_OEM_Product_NF_60_KPDCB-4B__side_2020_1200px_900px_d7e8bd70ba.png)
Flow rate: max. 2.6 l/min
Suction height: max. 3 mH2O
Operating pressure: max. 1 bar (rel.)
![NFB 100](/fileadmin/_processed_/1/9/csm_OEM_Product_NFB_100_KPDCB-4_side_2020_1200px_900px_66d0bd6f86.png)
Oxygen
The following KNF pumps can be used for recirculating oxygen:
NMP 830
NMP 850
NMP 850.1.2
Flow rate: max. 3.1 l/min
Ultimate vacuum: max. 250 mbar (abs.)
Operating pressure: max. 1.4 bar (rel.)
![NMP 830](/fileadmin/_processed_/3/d/csm_OEM_Product_NMP830K_DC-B_I_1200_900px_5557b42b27.png)
Flow rate: max. 4.5 l/min
Ultimate vacuum: max. 230 mbar (abs.)
Operating pressure: max. 2.5 bar (rel.)
![NMP 850](/fileadmin/_processed_/3/7/csm_NMP_850_DCB-I_2022_1200px_900px_01_c6f84614d7.png)
Flow rate: max. 8.5 l/min
Ultimate vacuum: max. 60 mbar (abs.)
Operating pressure: max. 2.5 bar (rel.)
![NMP 850.1.2](/fileadmin/_processed_/4/4/csm_OEM_Product_NMP_850.1.2KPDC-BI_1200px_900px_831df2a150.png)
NMP 830.1.2 HP
N 816
Flow rate: max. 9 l/min
Ultimate vacuum: max. 55 mbar (abs.)
Operating pressure: max. 3 bar (rel.)
![NMP 830.1.2 HP](/fileadmin/_processed_/d/4/csm_OEM_Product_NMP830.1.2KPDC-B_HP_KM32_side_2020_1200px_900px_007ad5f76f.png)
Flow rate: max. 16 l/min
Ultimate vacuum: max. 100 mbar (abs.)
Operating pressure: max. 0.5 bar (rel.)
![N 816](/fileadmin/_processed_/9/2/csm_OEM_Product_N_816_APDC-B_side_2020_1200px_900px_1a112dad7d.png)
