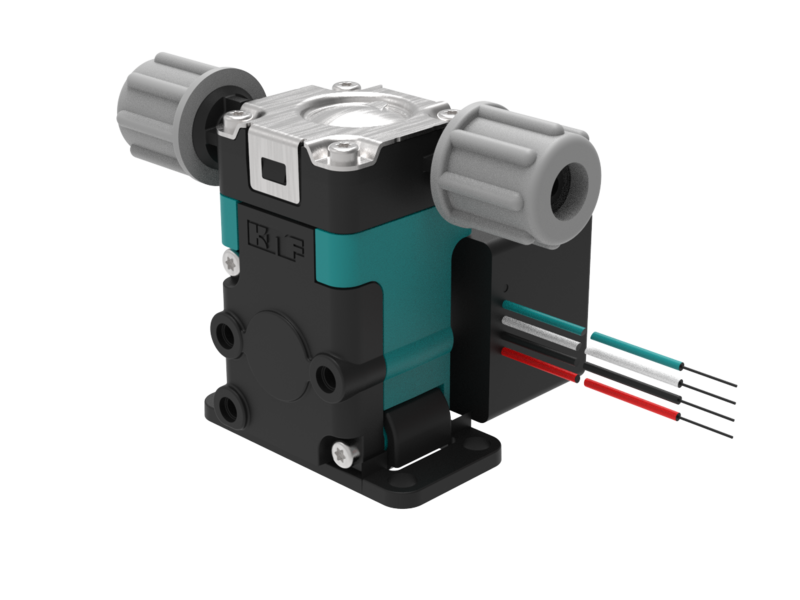

Diaphragm Liquid Pump
FF 1.12
Diaphragm Liquid Pump
FF 1.12
- Flow Rate (max.): 0.13 l/min
- Pressure (max.): 6 bar (rel.)
- Suction Height (max.): 3 mH₂O
KNF diaphragm liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options.
Benefits
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- Maintenance-free
- Highly resistant to aggressive media
- Self-priming
- Can run dry
Special Features
- NSF certified
- Diaphragm pump
| Flow Rate (max.) | 0.13 l/min |
| Pressure (max.) | 6 bar (rel.) |
| Suction Height (max.) | 3 mH₂O |
| Valve Material Options | EPDM, FFKM |
| Diaphragm Material Options | EPDM, PTFE |
| Pump Head Material Options | PPS |
| Motor Type Options | Brushless DC |
- Analytical instruments
- Cleaning and disinfection
- Climate technology
- Medical equipment
- Fuel cells
- Inkjet printing
- Lab equipment
FF 1.12
Datasheet FF 1.12
PDF (1 MB) - Datasheet - English
Operating Manual FF 1.12
PDF (358 KB) - Operating Manual - English
3D CAD Model FF 1.12
ZIP (15 MB) - CAD File - English
Technical Details
| Flow Rate (max.) | 0.13 l/min |
| Pressure (max.) | 6 bar (rel.) |
| Suction Height (max.) | 3 mH₂O |
| Valve Material Options | EPDM, FFKM |
| Diaphragm Material Options | EPDM, PTFE |
| Pump Head Material Options | PPS |
| Motor Type Options | Brushless DC |
Features
Benefits
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- Maintenance-free
- Highly resistant to aggressive media
- Self-priming
- Can run dry
Special Features
- NSF certified
- Diaphragm pump
Applications
- Analytical instruments
- Cleaning and disinfection
- Climate technology
- Medical equipment
- Fuel cells
- Inkjet printing
- Lab equipment
Downloads
Datasheet FF 1.12
PDF (1 MB) - Datasheet - English
Operating Manual FF 1.12
PDF (358 KB) - Operating Manual - English
3D CAD Model FF 1.12
ZIP (15 MB) - CAD File - English
Accessories FF 1.12
Here, you can find an overview of the available accessories for this product. For further details or order requests, please get in touch with our experts.
Contact Us
| Silencers & Filters | Part No. | ||
|---|---|---|---|
|
Filter FS 25
|
Datasheet filter - PDF (398 KB) - Datasheet - English
|
Part No.
On request
|
| Valves & Gauges | Part No. | ||
|
Pressure control valve FDV 30 / 31
|
Datasheet pressure control valve - PDF (972 KB) - Datasheet - English
Operating manual pressure control valve - PDF (183 KB) - Operating Manual - English
|
Part No.
On request
|
| Pulsation Dampers | Part No. | ||
|
Pulsation damper FPD 06
|
Datasheet pulsation damper - PDF (747 KB) - Datasheet - English
Operating manual pulsation damper - PDF (536 KB) - Operating Manual - English
|
Part No.
On request
|
| Mounting Kits & Shock Mounts | Part No. | ||
|
Universal mounting plate
|
For product series NF / FF / FL
Datasheet universal mounting plate - PDF (434 KB) - Datasheet - English
3D CAD model universal mounting plate - STP (281 KB) - CAD File - English
|
Part No.
On request
|
